| Model Name | SSF1725-B | SSH1725-B | SSD1725-B | |

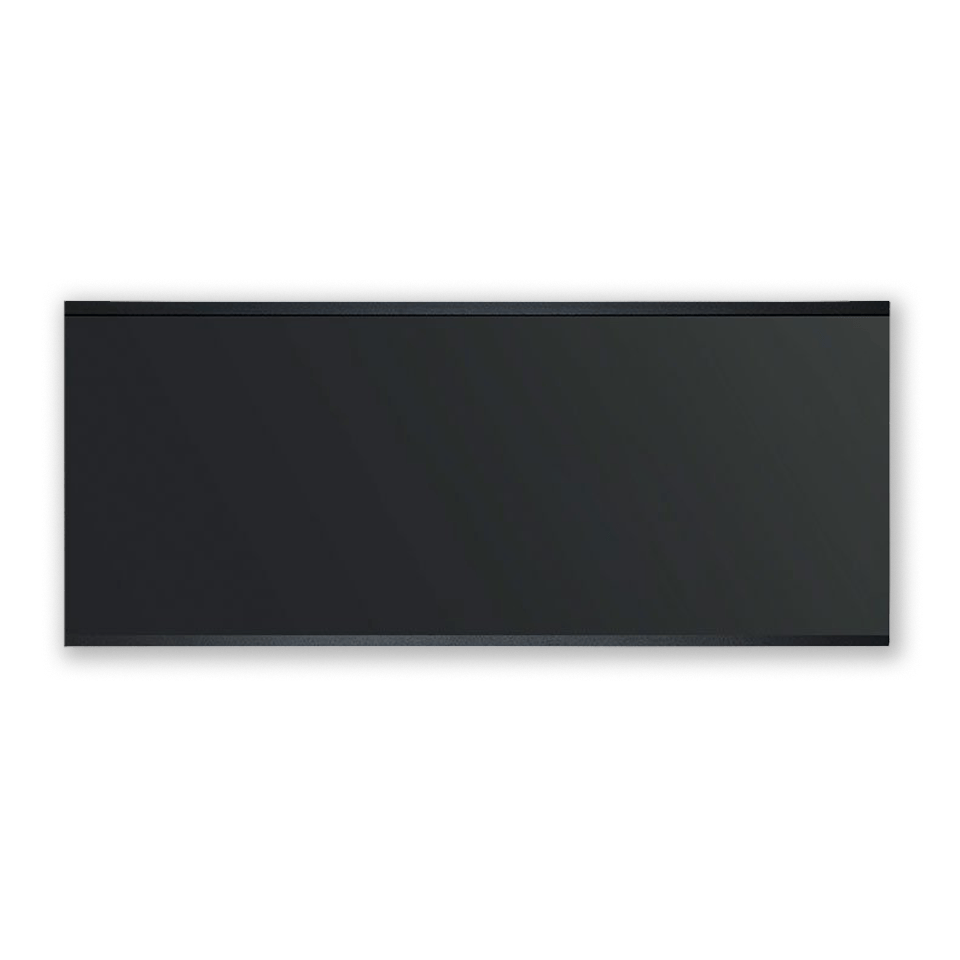

| Description | 17.2" Resizing LCD, 1000 nits LED backlight, 1366x510 | |||
| size | 17.2" | |||
| Display area (mm) | 409.8(H) x 153(V) | |||
| Brightness | 1000 cd/m² | |||
| Resolution | 1366x510 | |||
| Aspect ratio | 16:6 | |||
| Contrast ratio | 850:1 | |||
| Pixel pitch (mm) | 0.300(H) x 0.300(V) | |||
| Pixel per inch (PPI) | 84 | |||
| Viewing angle | 178°(H),178°(V) | |||
| Color saturation (NTSC) | 79% | |||
| Display colors | 16.7M | |||
| Response time (Typical) | 16ms | |||
| Video interface | LVDS | DVI-I, HDMI, DP | ||
| Input power | DC 12V | |||
| Power consumption | 16.7W | 17.4W | ||
| Dimensions (mm) | 430.3x178.4x14 | 432.9x181.1x40 | ||
| Bezel size (U/B/L/R) | 12.7/12.7/10.25/10.25 | 14/14/11.6/11.5 | ||
| Weight (Net) | 1Kg | 2.3kg | ||
| Mounting | VESA 75x75, 100x100 | |||
| OSD key | 4 keys (Power switch, menu, +, -) | |||
| OSD control | Brightness, color, contrast, H/V position… etc | |||
| Operating temperature | 0°C ~ +50°C | |||
| Storage temperature | -20°C ~ +60°C | |||
下载
-
标题
SSD1725-B
类型Datasheet
发布日期2021/Aug/21
-
标题
SSF_H1725-B
类型Datasheet
发布日期2021/Aug/21
