长条液晶显示器

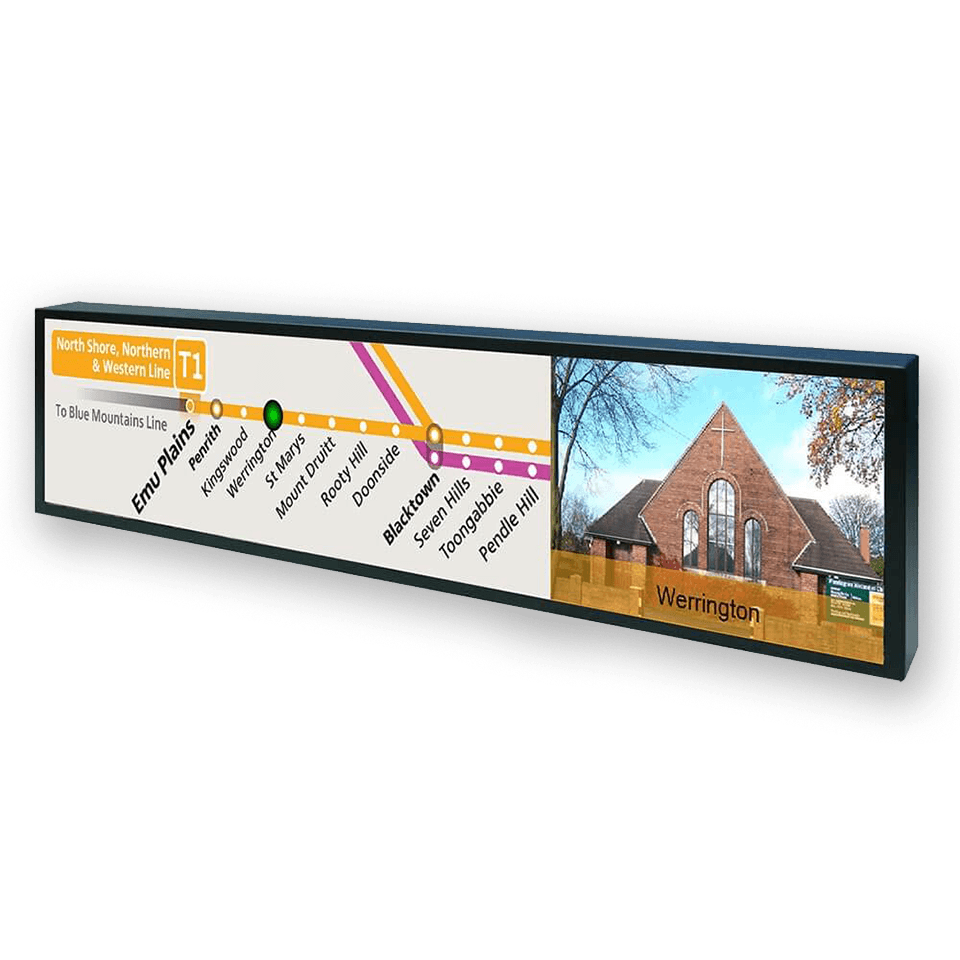

3685-I

36.8" Resizing LCD, 1000 nits LED backlight, 1920x358
  • 36.8" resizing LCD
  • Resizing display  (aspect ratio of 16 : 2.9)
  • Sunlight readable, high brightness (1,000 nits)
  • Resolutions: 1920 x 358
  • Wide view angle of 178° (H), 178° (V)
  • Low power consumption
  • BL MTBF: 100,000 hours
Model Name SSF3685-I SSH3685-I SSD3685-I
Description 36.8" Resizing LCD, 1000 nits LED backlight, 1920x358
size 36.8"
Display area (mm) 919.3(H) x 171.4(V)
Brightness 1000 cd/m²
Resolution 1920x358
Aspect ratio 16:2.9
Contrast ratio 7600:1
Pixel pitch (mm) 0.4788 (H) x 0.4788 (V)
Pixel per inch (PPI) 52
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 9.5ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 22W 27W
Dimensions (mm) 960x207.3x16 962.8x210.1x56.2
Bezel size (U/B/L/R) 15.2/15.2/17.8/17.8 16.6/16.6/19.2/19.2
Weight (Net) 3.5 kg 6.3 kg
Mounting   VESA 75x75, 400x75
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
