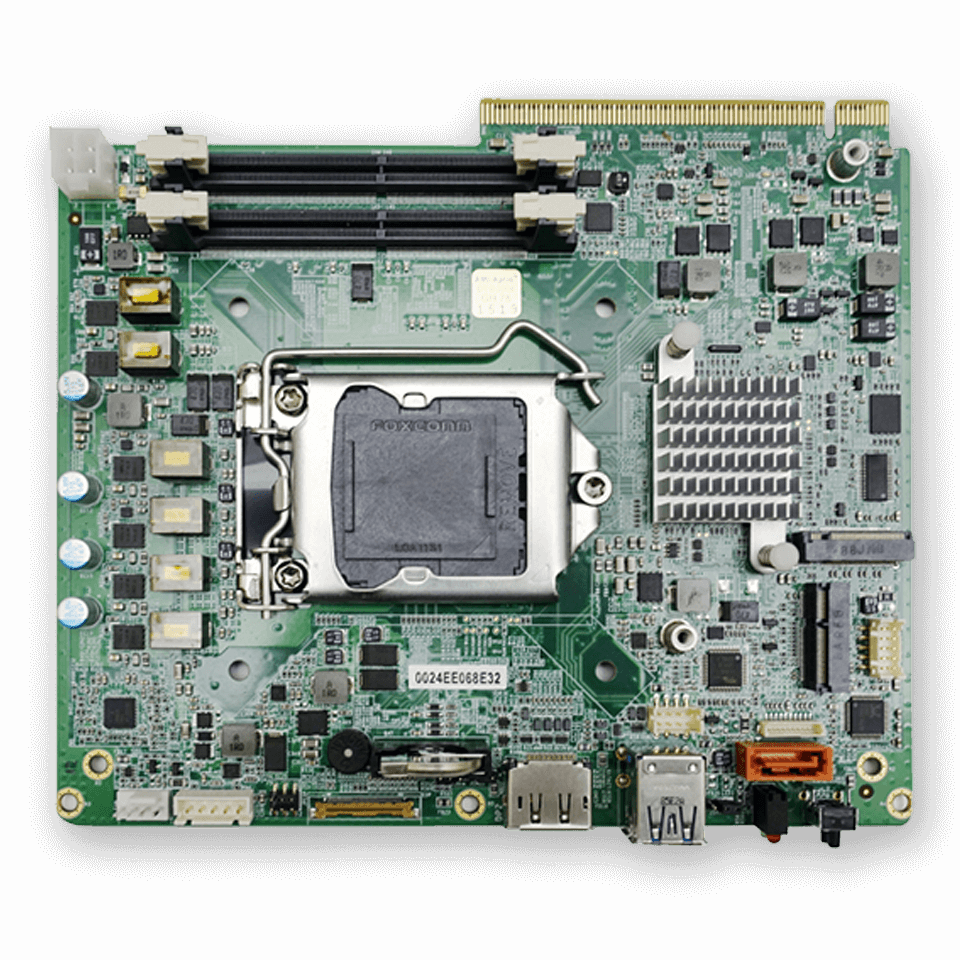

Intel® Smart Kiosk Module
ASKM-CFL3
Intel® Smart Kiosk Module (SKM) with Intel® Coffee Lake –S, Intel® 8th Generation CoreTM i7/ i5/ i3/ Celeron® Processors with DP, SATADOM, 2 USB, M.2 E-key and M-key Slot.
- Intel® Coffee Lake -S LGA1151 Socket Processor, Max. 65W TDPs with Intel® Q370 chipset
- Two 260-pin SO-DIMMs DDR4 up to 32GB 2666 MT/s SDRAM
- Multi-Display : HDMI (SKM G/F) / DP (SKM G/F) / DP
- 1 M.2 E-key 2230 (WiFi/BT) and 1 M.2 M-key 2280 (SSD/NVMe) slots
- 1 SATADOM, 2 USB 3.1 ports
- Support Intel AMT v12.0 and TPM v2.0 (optional)
- SKM Golden Finger (SKM G/F): 2 Display (HDMI+DP), 3 USB2.0 and 2 USB3.0, 1 LAN (MDIx), 2 PCIE x1, 2 I2C, 1 UART,1 GPIO (1 bit), 1 GSPI, 2 SATA, 1 Audio (Line-out/Mic-in), 1 LPC
ASKM-CFL3 is the new Intel® Smart Kiosk Module (Intel® SKM) is a revolutionary solution that makes it easier to scale and maintain interactive kiosks, which are increasingly being used by businesses and governments worldwide to offer customers around-the-clock access to information and services.
A key feature of the Smart KIOSK Module family is its modular design, which provides a standard hardware form factor reference design for the KIOSK system. From the developer’s perspective, this architecture separates the system's “one-size-fits-all” compute module and the peripheral interface board (PIB). This is a significant design feature because it eliminates the need to unplug and accurately reattach multiple cables when it is time to service, replace, or upgrade the compute module. This simple connection is made using a standard PCIe-based interface.
A key feature of the Smart KIOSK Module family is its modular design, which provides a standard hardware form factor reference design for the KIOSK system. From the developer’s perspective, this architecture separates the system's “one-size-fits-all” compute module and the peripheral interface board (PIB). This is a significant design feature because it eliminates the need to unplug and accurately reattach multiple cables when it is time to service, replace, or upgrade the compute module. This simple connection is made using a standard PCIe-based interface.
| Model name | ASKM-CFL3 |
| Form Factor | Smart Kiosk Module |
| Dimensions (L)x(W)mm | 175mm x 140mm |
| Processor | Intel® 8th Gen Core™ i7/ i5/ i3/ Pentium®/ Celeron® (LGA1151) Processors (Max. 65W TDPs) |
| Chipset | Intel® Q370 PCH |
| BIOS | AMI SPI Flash ROM |
| Technology | DDR4 SDRAM up to 2666 MT/s (max.) |
| Max. Capacity | Up to 32GB (2 x 16GB) |
| Graphic | Intel® HD Gen. 9-LP Graphics integrated |
| Socket | 2 x 260-pin SO-DIMMs |
| Display Interface | 1 x DP v1.2 (Rear I/O), 1 x DP v1.2 interface (SKM Gold Finger), 1 x HDMI v1.4 interface (SKM Gold Finger) |
| Watchdog Timer | Yes |
| LAN Controller | Intel® I219LM Gigabit Ethernet PHY |
| Audio Codec | Realtek® ALC662 HD |
| Environment | |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Rear I/O | |
| COM | 1 x DP |
| Display | 2 x USB 3.1 |
| Power Requirement | |
| Power Type | Intel® SKM gold finger |
| Voltage | 12Vdc/118W |
