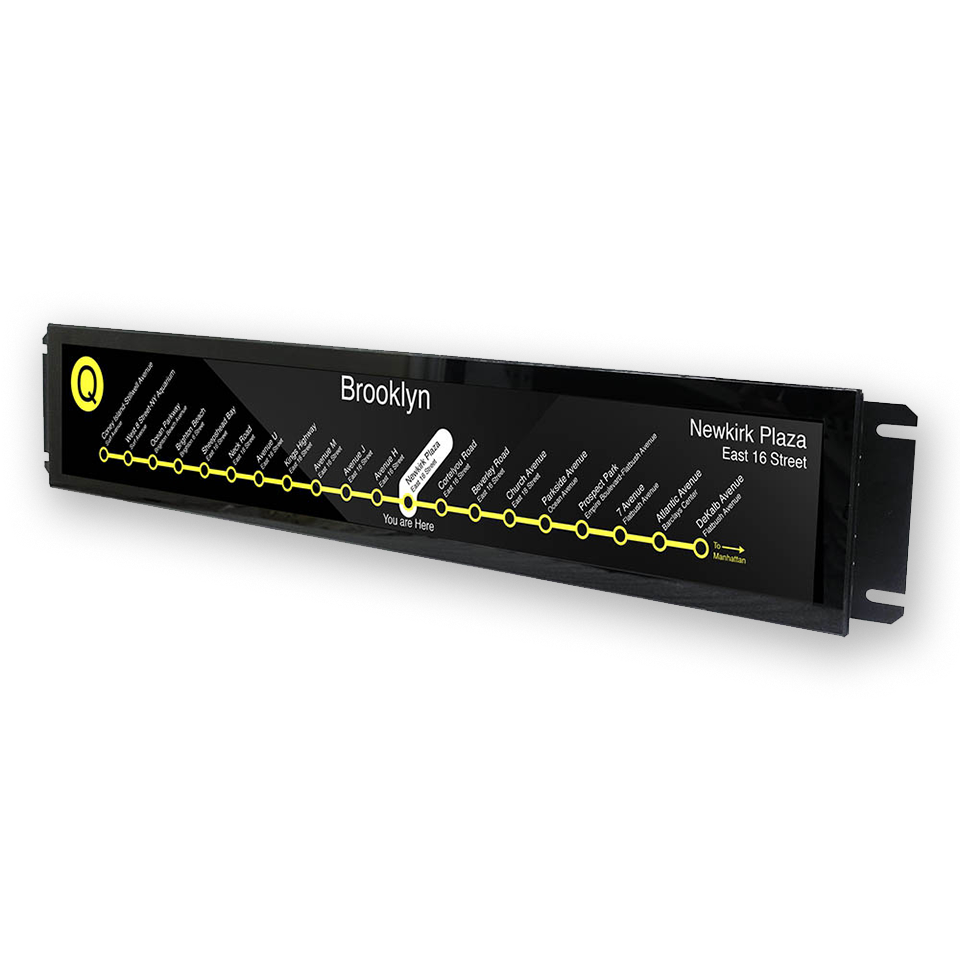

交通專用长条屏萤幕电脑

ITRP-2845-SKL2

28" EN50155 Railway Full IP65 Fanless Panel PC
  • Intel® 6th Skylake mobile processor support
  • 28" LCD, 1920 x 357, 1000 nits
  • EN50155 certificated for railway
  • Full IP65 and fanless design
  • Support 24/36/48/72/96/110 VDC input with M12 connector
  • Anti-Shock and vibration

主要特色

  • Full IP65

  • Transportation

  • M12 Connectors

  • Fanless

ITRP-2845-SKL2 is a fanless Passenger Information System, EN 50155 compliant, serving as a reliable platform to provide passenger information on wide versatility of vehicles, such as trains and trams. It features a 28 and 38 inch stretched LCD panel.

Powered by Intel® 6th Generation processor, and designed from the ground up to be robustness with IP (Ingress protection) level 54. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
Model Name ITRP-2845-SKL2
LCD
Display Type 28" Resizing TFT LCD
Resolution 1920x357
Brightness 1000 nits
Color 16.7M
Pixel Pitch (H/V) 0.3637mm x 0.3637mm
Constrast Ratio 6500:1
Viewing Angle (H/V) 178°(H),178°(V)
Size 28"
System
Chipset Intel® Skylake-U integrated
Memory 1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB
Graphic Intel® HD Graphics 520/510
Indicators N/A
Controls N/A
Expansion Slot 1 x Mini-PCIe (Full size with SIM)
1 x Mini-PCIe (Full size, share with mSATA)
Processor Intel® Core™ i7-6600U 2.6GHz dual coreprocessor (TDP 15W)
Intel® Core™ i5-6300U 2.4GHz dual coreprocessor (TDP 15W)
Intel® Core™ i3-6100U 2.3GHz dual coreprocessor (TDP 15W)
Intel® Celeron® 3955U 2.0GHz dual coreprocessor (TDP 15W)

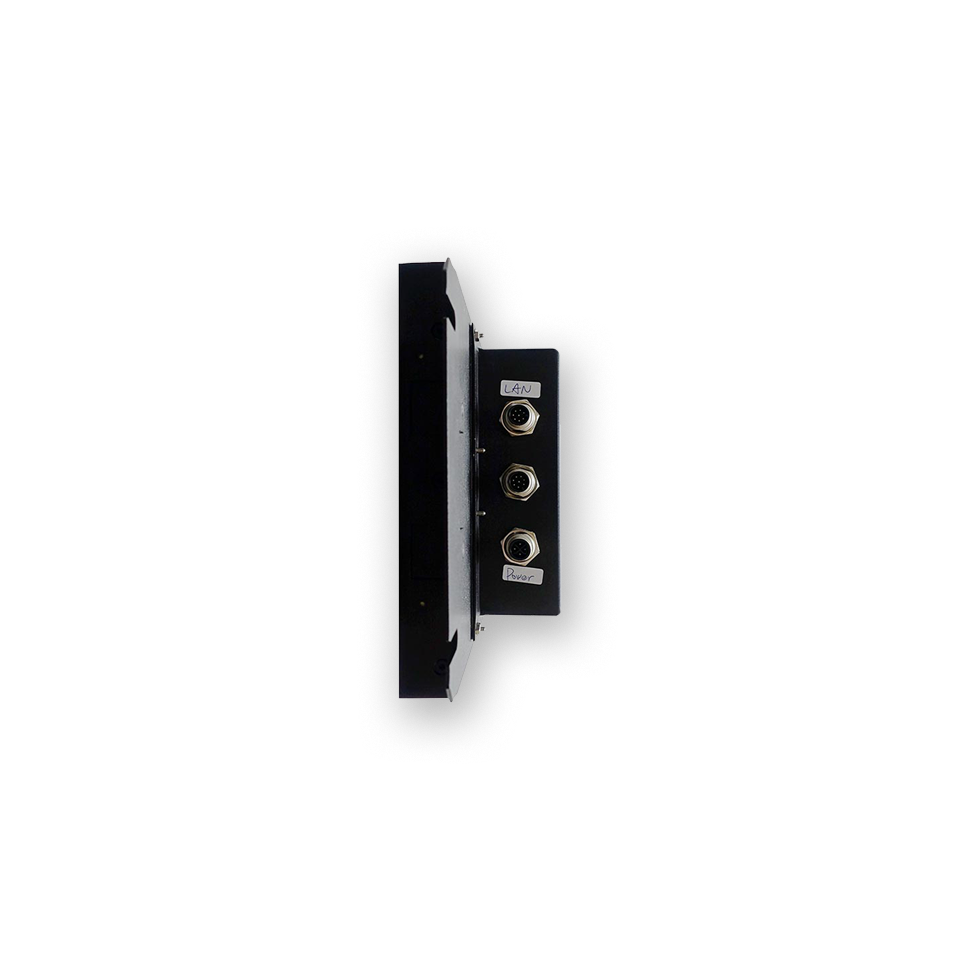

I/O 1 x COM ,1x HMDI, 2 x USB 2.0, 2 x LAN Connector Type: M12
OS Support Win10, Linux
System I/O
LAN 2 x Gigabit Ethernet (1 x Intel® I210, 1 x Intel®I219LM)
Storage Support
mSATA 1 x mSATA
Power
Power Supply 110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional)
Environment
Operating Temperature EN50155 T1 ; -25°C ~ 55°C
Storage Temperature -40°C ~ 80°C
Relative humidity 0% ~ 90% (non-condensing)
IP level Full IP65
Vibration,Shock EN50155
Mechanical
Weight 6.94 kg
Dimensions 815 mm(W) x 68.6 mm(D) x 178.1 mm(H)
