Display Control Board (WUXGA)

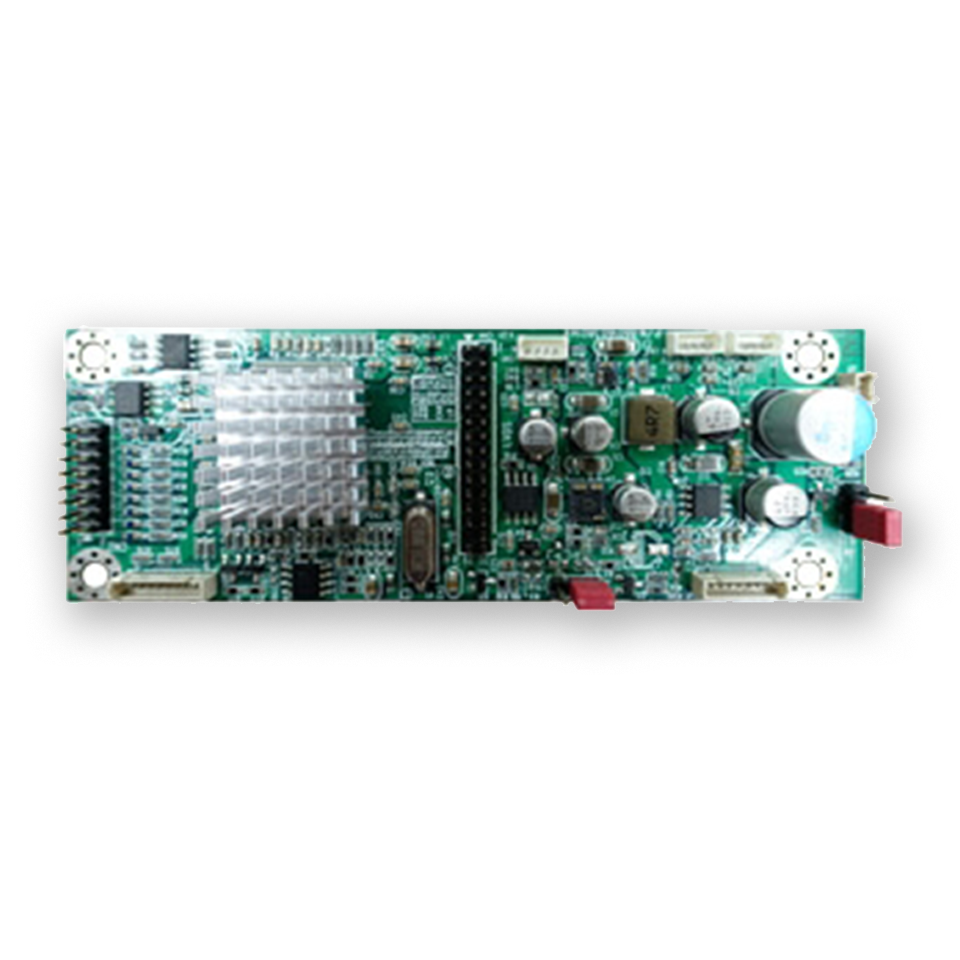

AD6038DM
Display Control Board (WUXGA)
- Maximum resolution WUXGA (1920x1200)
- Supports dual pixel (48bits) LVDS and single pixel (24bits) LVDS
- Supports refresh rate up to 75Hz, compatible with standard VESA specification
- Supports non-linear scaling from 4:3 to 16:9 or 16:9 to 4:3
- Supports DVI input High resolution PWM dimming control output
- OSD control available
- Input DC 12V
| Model name | AD6038DM |
| Chipset | STDP6038 |
| Max. Resolution | WUXGA (1920x1200) |
| Interface | Single/Dual LVDS |
| Input Power | DC 12V |
| Panel Power Selection | 3.3V, 5V |
| Video Input (Standard) | DVI |
| RS232 Control Port | Upon request |
| Light Sensor | Yes (Optional) |
| Speaker | - |
| External VR Control | Yes (Optional) |
| IR | - |
| Dimension | 114 x 40 mm |
| F / R Control Button | 5 Key 、 4 Key |
| 5 key | Power Switch, Menu, Select (+,-), Auto |
| 4 key | Power Switch, Menu, Select (+,‐) |
| OSD Menu | Brightness, Contrast, H/V Position, Color, Phase, Clock… |
| Pixel Color | 8 bits(LVDS) |
| Inputs | DVI |
| Resolution | 1920X1200 |
