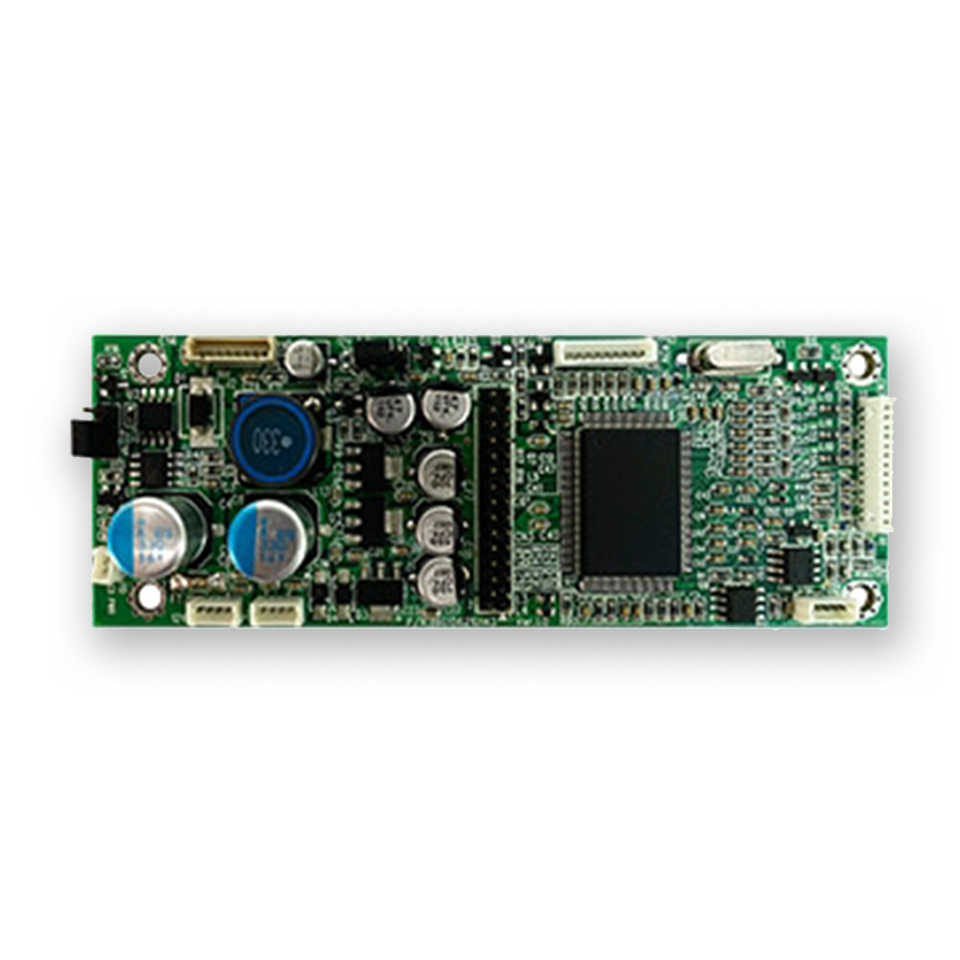

Display Control Board (WUXGA)

AD6038GM

Display Control Board (WUXGA)
  • Maximum resolution WUXGA (1920x1200)
    Supports dual pixel (48bits) LVDS and single pixel (24bits) LVDS
    Supports refresh rate up to 75Hz, compatible with standard VESA specification
    Supports non-linear scaling from 4:3 to 16:9 or 16:9 to 4:3
    Supports VGA input High resolution PWM dimming control output
    Provides one VR connector for external dimming control
    Provides light sensor for dimming control OSD control available
    Input DC 12V
Model name AD6038GM
Chipset STDP6038
Max. Resolution WUXGA (1920x1200)
Interface Single/Dual LVDS
Input Power DC 12V
Panel Power Selection 3.3V, 5V
Video Input (Standard) VGA
RS232 Control Port Yes (Optional)
IR -
Dimension 114 x 40 mm
F / R Control Button 5 Key 、 4 Key
5 key Power Switch, Menu, Select (+,-), Auto
4 key Power Switch, Menu, Select (+,‐)
OSD Menu Brightness, Contrast, H/V Position, Color, Phase, Clock…
Pixel Color 8 bits (LVDS)
Inputs VGA
Resolution 1920X1200
