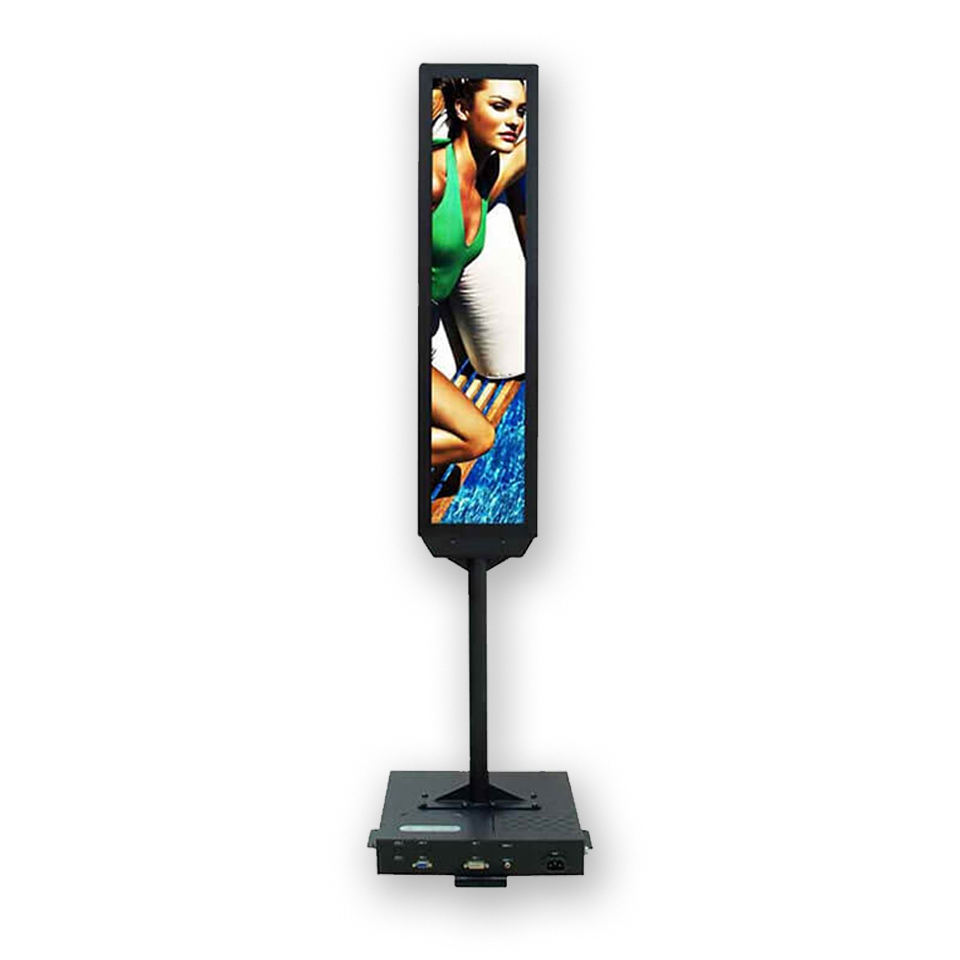

Double-sided LCD

SSC2925-E

29.3" two resizing LCD, 1000 nits LED backlight, 1366x512
  • 29.3" resizing, double-sided LCD
  • Resizing display  (aspect ratio of 16 : 6)
  • Sunlight readable, high brightness (1,000 nits)
  • Resolutions: 1366 x 512
  • High contrast ratio (2500:1)
  • Wide viewing angle of 176° (H), 176° (V)
  • BL MTBF: 70,000 hours
Model Name SSC2925-E
Description 29.3" two resizing LCD, 1000 nits LED backlight, 1366x512
size 29.3"
Display area (mm) 697.68(H) x 261.5(V)
Brightness 1000 cd/m²
Resolution 1366x512
Aspect ratio 16:6
Contrast ratio 2500:1
Pixel pitch (mm) 0.51075 (H) x 0.51075 (V)
Pixel per inch (PPI) 50
Viewing angle 176° (H), 176° (V)
Color saturation (NTSC) 80%
Display colors 16.7M
Response time (Typical) 6.5ms
Video interface VGA, DVI-D, HDMI
Input power AC100~240V
Power consumption 108W
Dimensions (mm) 1254.9 x 368 x 37
Bezel size (U/B/L/R) 25.7/25.7/23.1/23.1
Weight (Net) 17 kg
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, color, contrast, H/V position… etc
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20°C ~ +60°C
Product approval CE, FCC
