| Model Name | ULF0703-T | ULH0703-T | ULD0703-T |
| Description | 7” TFT LCD, 600 nits LED Backlight, 1280x800 | ||
| size | 7” | ||
| Display area (mm) | 149.76(H) x 93.60(V) | ||
| Brightness | 600 cd/m² | ||
| Resolution | 1280x800 | ||
| Aspect ratio | 16:10 | ||
| Contrast ratio | 1000:1 | ||
| Pixel pitch (mm) | 0.117(H) x 0.117(V) | ||
| Pixel per inch (PPI) | 216 | ||
| Viewing angle | 176°(H),176°(V) | ||
| Color saturation (NTSC) | 58% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 35ms | ||

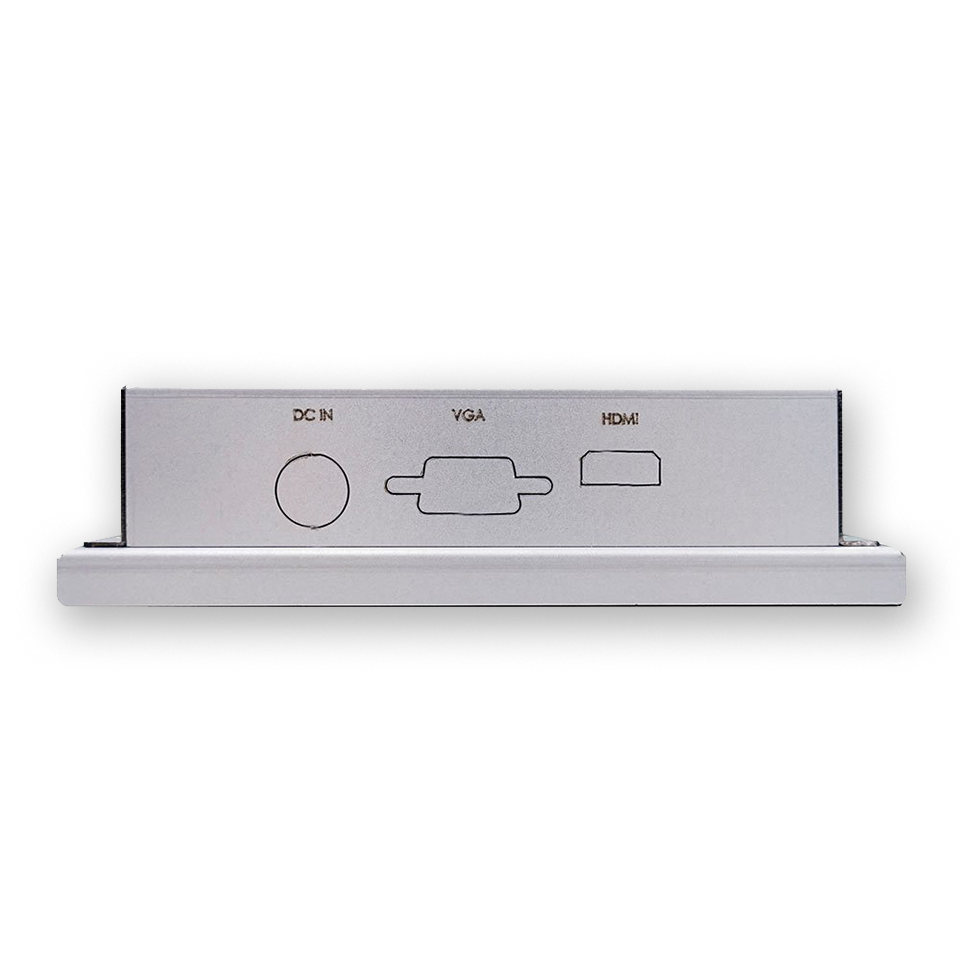

| Video interface | LVDS | VGA, DVI-D, HDMI | |
| Input power | DC 12V | ||
| Power consumption | 3W | 4W | |
| Dimensions (mm) | 161 x 107 x 4.50 | 163.6 x 109.6 x 42.8 | |
| Bezel size (U/B/L/R) | 9.7/3.7/7.37/3.87 | 11/5/8.67/5.17 | |
| Weight (Net) | 78 g | 0.55 kg | |
| Mounting | VESA 75x75 | ||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -20 ˚C ~ 70 ˚C | ||
| Storage temperature | -20 ˚C ~ 70 ˚C | ||
