The SDM-based ISDM-4805 is an all-in-one solution for hassle-free operation, also a scalable, future-proofed plug-and-play solution. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.

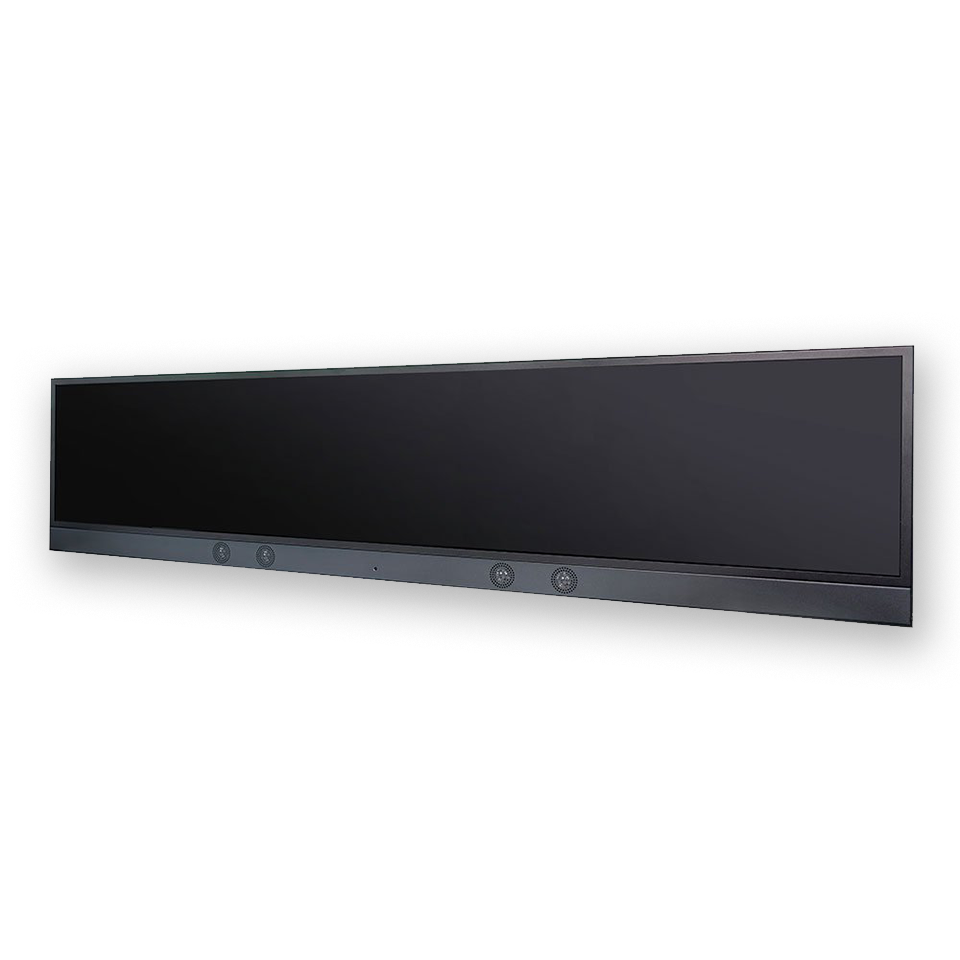

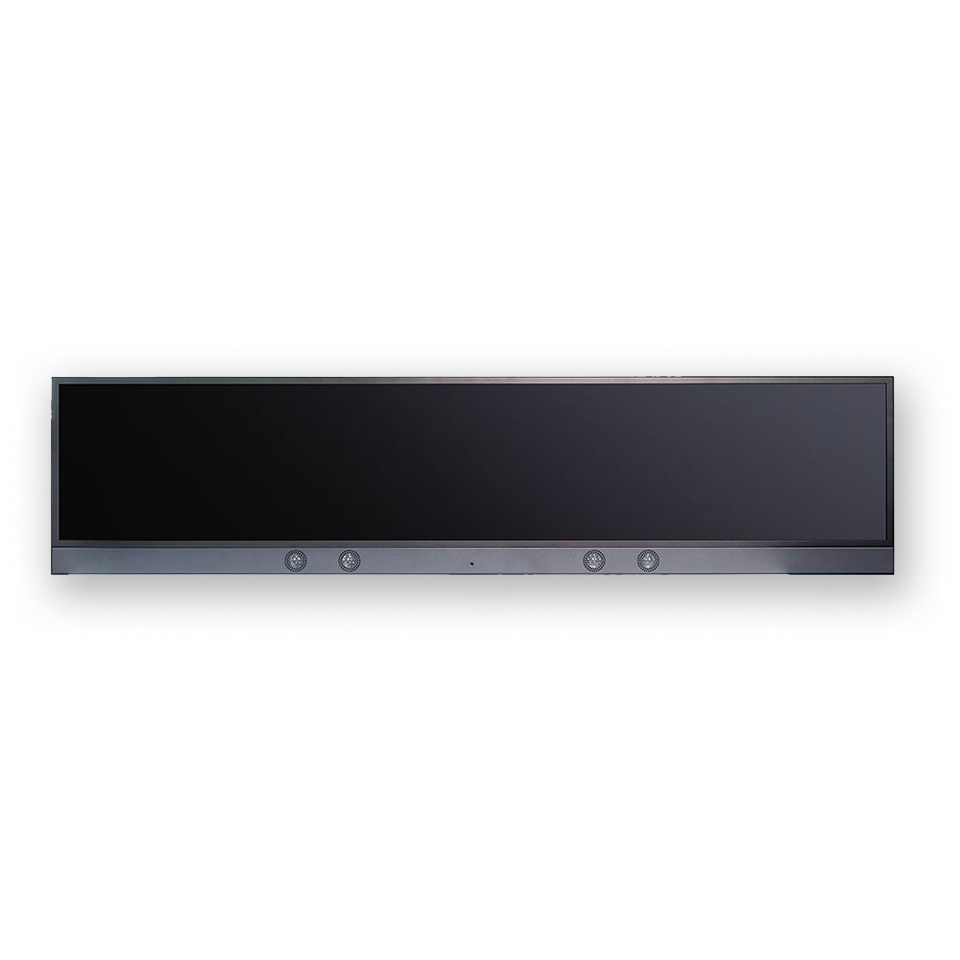

The ISDM-4805 has a 48-inch 4K, stretched LCD display with 3840 x 720 resolution, 1000 nits of high brightness and LED backlights, it can deliver the message in a more lively and conspicuous style to attract commuters. The ISDM-4805 support Litemax’s smart display modules: ASDM-APL5 (Intel®SDM-S) and APL6 (Intel®SDM-L). The ASDM-APL5 and APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.

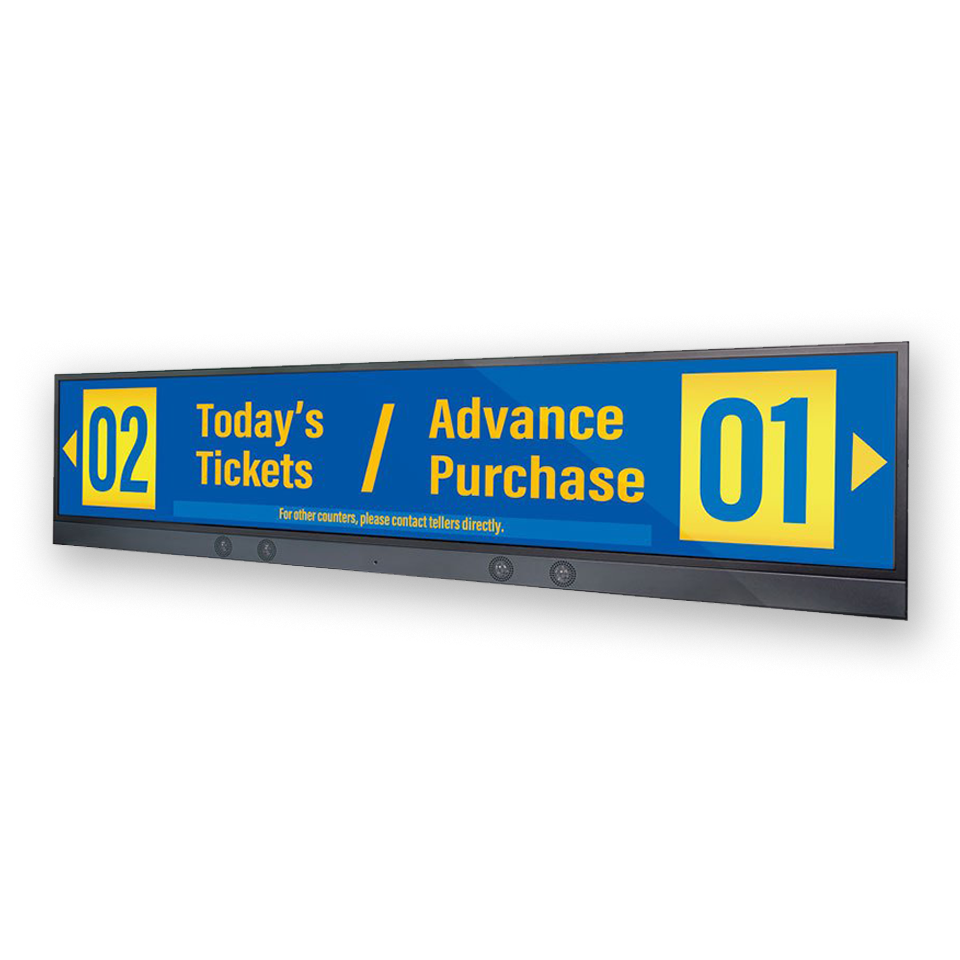

The ISDM-4805 has built-in speakers and one M.2 Key E 2230 slot for Wi-Fi. Apart from providing queuing service, ISDM-4805 can deliver timely and important message, turning the ticketing center into a multi-functional service center.
The ISDM-4805 has a 48-inch 4K, stretched LCD display with 3840 x 720 resolution, 1000 nits of high brightness and LED backlights, it can deliver the message in a more lively and conspicuous style to attract commuters. The ISDM-4805 support Litemax’s smart display modules: ASDM-APL5 (Intel®SDM-S) and APL6 (Intel®SDM-L). The ASDM-APL5 and APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.
The ISDM-4805 has built-in speakers and one M.2 Key E 2230 slot for Wi-Fi. Apart from providing queuing service, ISDM-4805 can deliver timely and important message, turning the ticketing center into a multi-functional service center.
| Model name | ISDM-4805 |
| Description | 48” TFT LCD,1000nits, 3840x720 SDM Solutions |
| Size | 48” |
| Display Area (mm) | 1194.05(H) x 223.88(V) |
| Brightness | 1000 cd/m² |
| Resolution | 3840 x 720 |
| Aspect Ratio | 16:3 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.31095(H) x 0.31095(V) |
| Pixel Pre Inch (PPI) | 81 |
| Viewing Angle | 178°(H),178°(V) |
| Color Saturation (NTSC) | 83% |
| Display Colors | 16.7M |
| Response Time (Typical) | 16ms |
| Video interface | SDM-S/SDM-L interface |
| SDM Slot | SDM-S/SDM-L |
| Input Power | AC100~240V |
| Power Consumption | 106W (Panel Model Only) | 126W (w/SDM-L N3350) |
| Dimensions (mm) | 1220.3 x 289.7 x 62 |
| Bezel Size(U/B/L/R) | 12.5/ 50.2/12/12 mm |
| Weight (Net) | 12kg |

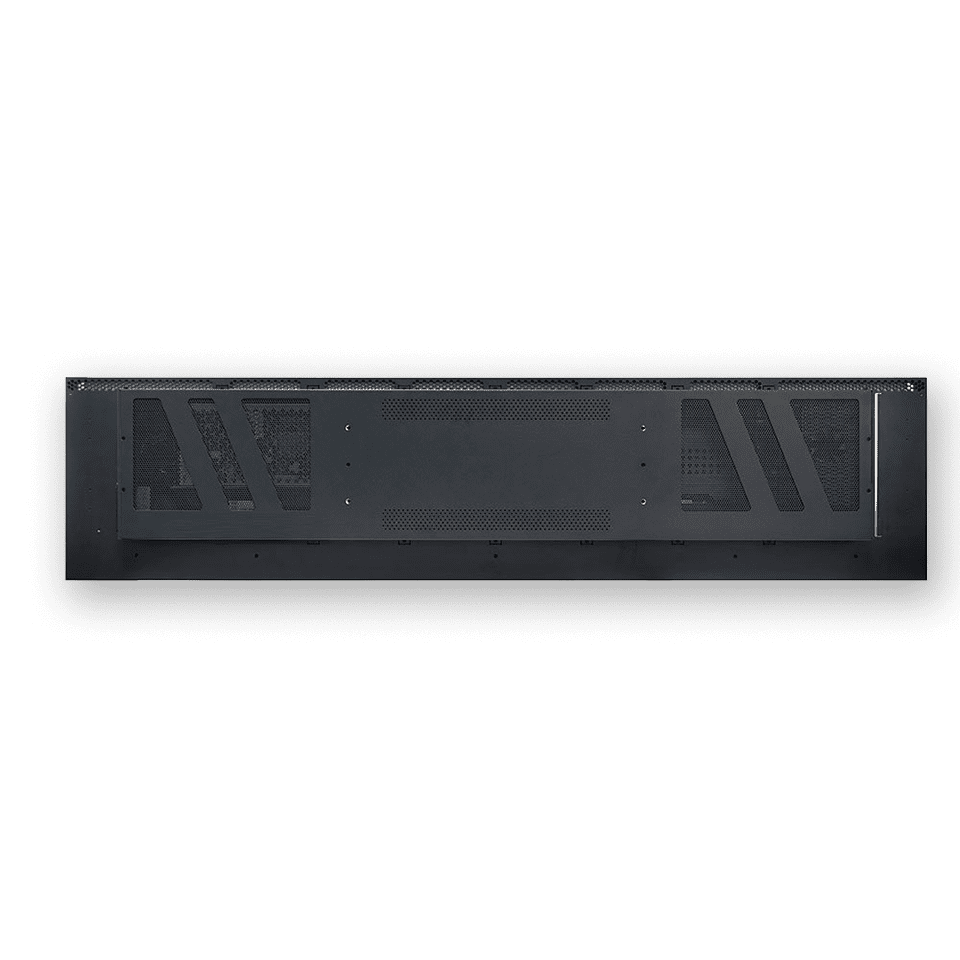

| Mounting | VESA 400x100, (M6 Screw) |
| OSD key | 5 Keys (Power Switch, Menu, +, -,Return) |
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
| Operating Temperature | 0 ˚C ~ 50 ˚C |
| Storage Temperature | -20 ˚C ~ 60 ˚C |
