航海应用萤幕电脑
NPS1735

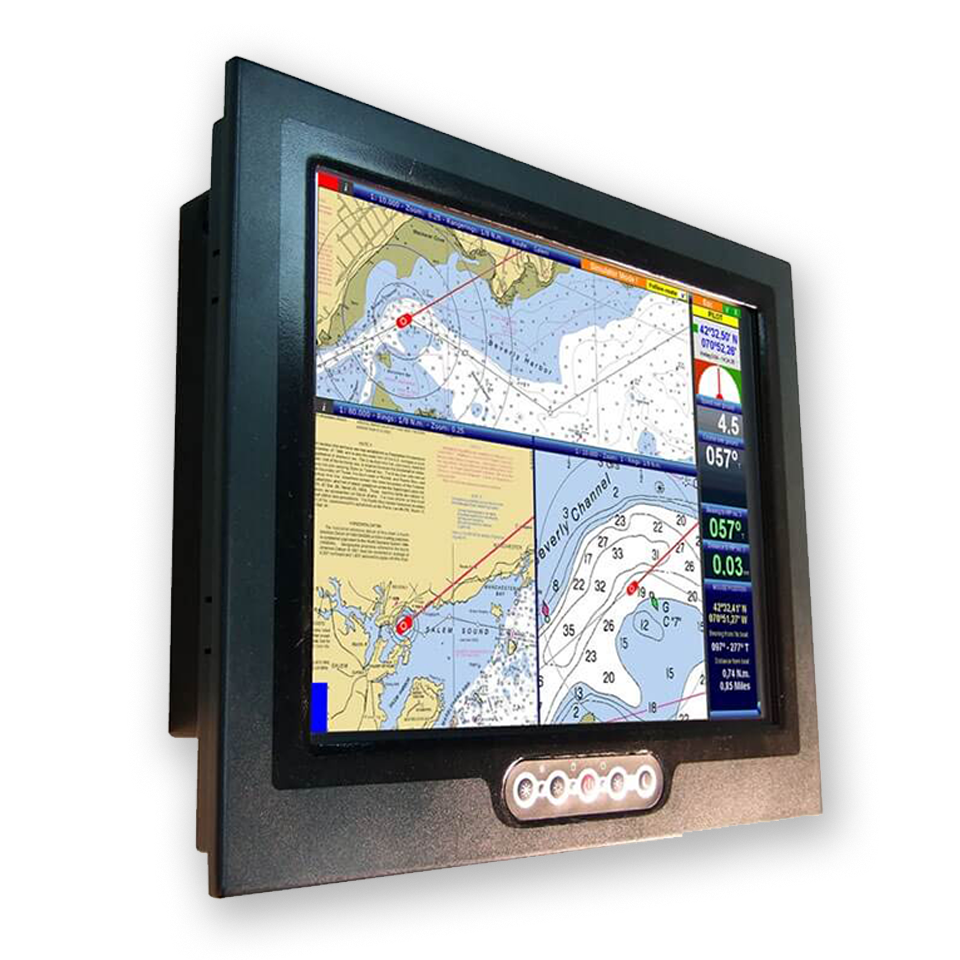

17" IP65 Sunlight Readable Marine Panel PC
- 17" sunlight readable, high brightness (1,000 nits) LCD
- Advanced Optical Bonding (AOT)
- Processor: Intel® Celeron M/Core 2 duo
- Chipset: Intel® 945GM+ICH7M
- Memory: DDR II DIMM 1GB to 4GB
- Ethernet: Intel® 82573L 10/100/1000Base-TX RJ45x2
- Storage: SATA 2.5" HDD (optional)
- Resistive touch support
- IP65 waterproof (front)
| Model name | NPS1735 |
| Description | 17" IP65 Sunlight Readable Marine Panel PC |
| Size | 17'' |
| Display area | 337.92x270.336 mm |
| Brightness | 1000 cd/m² |
| Resolution | 1280x1024 |
| Contrast ratio | 1000:1 (Typ) |
| Input power | AC input: AC 100~240V; DC input (optional) |
| Dimensions (mm) | 409.5mm x 363.1mm x 91.3mm |
| Weight (Net) | 6.3kg |
| Mounting | Panel (Flush), VESA75/100, stand |
| Operating temperature | -10˚C~40˚C (14℉~140℉) |
| Storage temperature | -20˚C~80˚C (-4℉~176℉) |
| Product approval | CE/FCC |
| IP rating | IP65 waterproof (facial) with console mounted |
| Construction | Aluminum alloy chassis |
| Optional | AOT (Optional) |
| Touch screen | 5-wire, analog resistive/AR glass |
| Processor | Intel® Celeron M/Core 2 Duo |
| Chipset | Intel® 945GM+ICH7M |
| Memory | DDR II DIMM 1GB up to 4GB |
| Ethernet | Intel® 82573L 10/100/1000Base-TX RJ45x2 |
| Storage | SATA 2.5" HDD (Optional) |
| I/O port |
Audio phone jack (line-in, line-out, MIC-in) x1RJ45x2, USBx4, COMx2 (RS232x1, RS232/422/485x1) DVI-Ix1, VGA-outx1, KB/MS PS2x1, power AC-inx1 |
| Bios | Award |
| Wake on LAN | Yes |
| Watchdog timer | Generates a time-out system reset |
| H/W status monitor | Power supply, fan speed and temperature |
| Expansion interface | Mini PCI (internal) |
| Operating humidity | 5~95% @40˚C, non-condensing |
