长条液晶显示器

5197-I

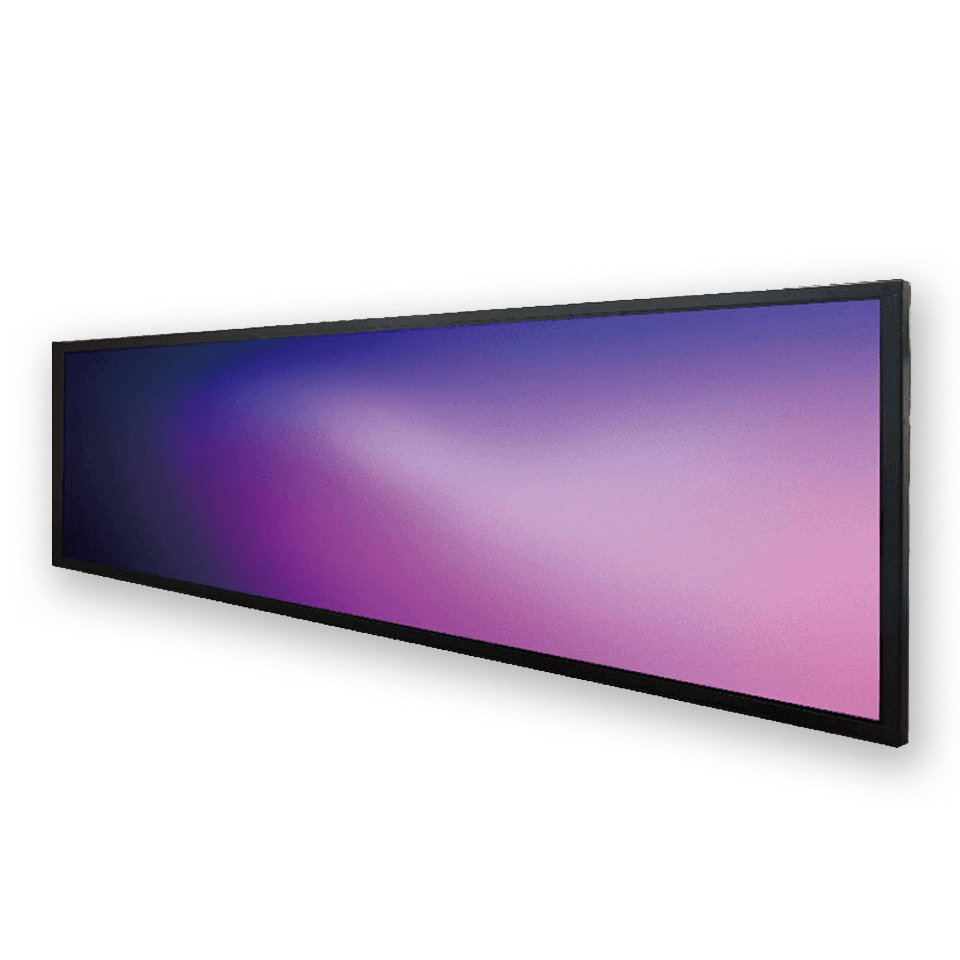

51.9" Resizing LCD, 1400 nits LED backlight, 3840x1077
  • 51.9" resizing LCD
  • Resizing display (aspect ratio of 16:4.4)
  • Sunlight readable, high brightness (1,400 nits)
  • Resolutions: 3840 x 1077
  • Wide view angle of 178°(H),178°(V)
  • Slim Bezel
  • BL MTBF: 100,000 hours
Model Name SSF5197-I SSH5197-I SSD5197-I
Description 51.9" Resizing LCD, 1400 nits LED backlight, 3840x1077
size 51.9"
Display area (mm) 1270(H) x 359.7(V)
Brightness 1400 cd/m²
Resolution 3840x1077
Aspect ratio 16:4.4
Contrast ratio 6130:1
Pixel pitch (mm) 0.33(H) x 0.33(V)
Pixel per inch (PPI) 76
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 83%
Display colors 1.07G
Response time (Typical) 9.5ms
Video interface V-by-One VGA, DVI-D, HDMI, DP
Input power   AC100~240V
Power consumption 129W 134W
Dimensions (mm) 1301.6x 392.2x 24.2 1304.2x 394.8x 67.4
Bezel size (U/B/L/R) 13.2/13.2/13.2/13.2 15/15/14.5/14.5
Weight (Net) 9.8 kg 22.5 kg
Mounting   VESA 300x75
OSD key   5 keys (Power Switch, Menu, +, -, Exit)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Product approval   CE, FCC
