Mini-ITX 工业级主机板

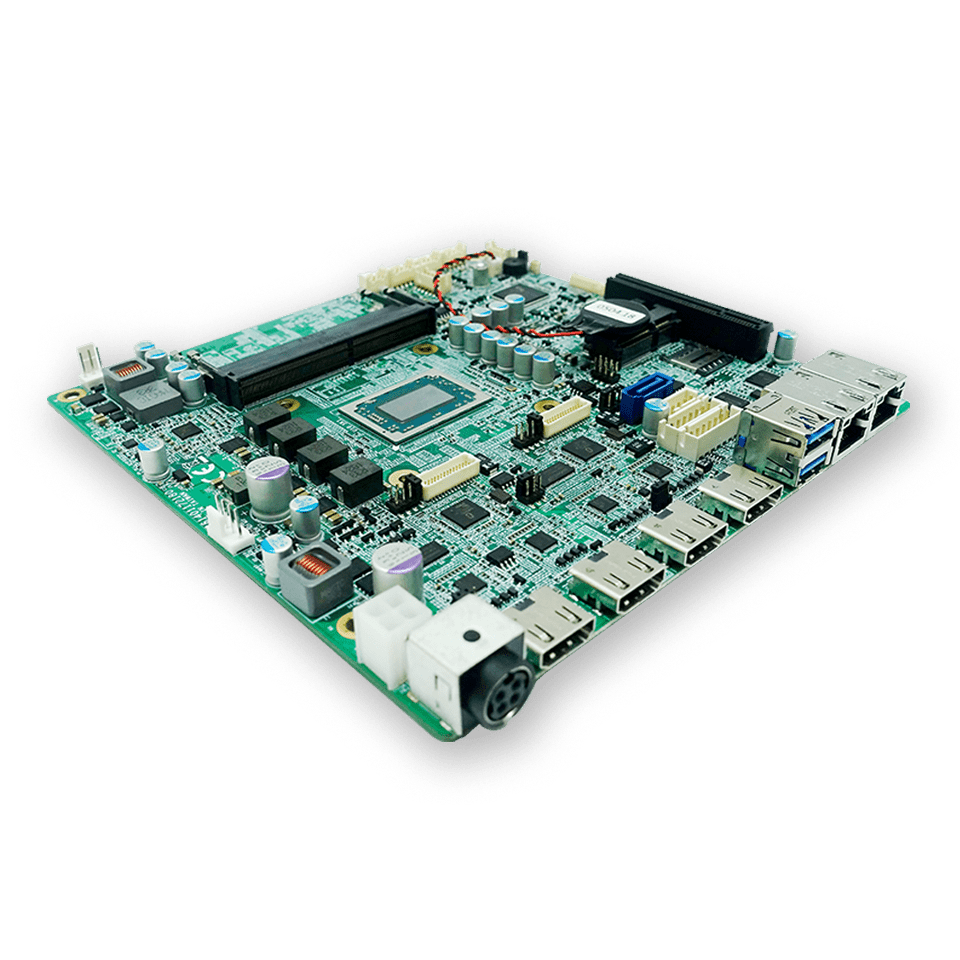

AMIX-V1K0

Mini-ITX Motherboard with AMD® Ryzen™ Embedded V1000 Series, 4 HDMI/2 LVDS(eDP), SATA III, 3 COM, 5 USB, Dual Intel® GbE LAN.
  • AMD® Ryzen™ Embedded V1000 series APU on board
  • High Performance “Zen” Core CPU + “VEGA” Graphics GPU
  • Four 4K@60 monitors support
  • Multi-Display: 4 HDMI 2.0b, 2 LVDS dual-channel (1 co-layout eDP)
  • 2 USB 3.1, 3 USB 2.0, 1 SATA III, 3 COM, 2 Intel® GbE LAN
  • 1 PCIe (x8), 1 Mini-PCIe w/ micor-SIM, 1 M.2 M-Key 2260 (SSD)
  • EuP/ErP 2013 Ready, DC-IN 12V or 19V ~ 24V
  • Support TPM v1.2/v2.0 (optional)

主要特色

  • Quad Display

  • Multi Tasking

  • 4K Stream

Model name AMIX-V1K0
Form Factor Mini-ITX
Dimensions (L)x(W)mm 170mm x 170mm (6.69" x 6.69")
Processor AMD® Ryzen™ Embedded V1000 series APU
V1807B 3.35GHz QC (35-54W)
V1756B 3.25GHz QC (35-54W)
V1605B 2.0GHz QC (12-25W)
V1202B 2.3GHz DC (12-25W)
Chipset AMD® RyzenTM Embedded V1000 APU integrated
BIOS AMI UEFI Flash ROM
LAN Controller Intel ®I211 GbE
Audio Codec Realtek ALC888S
Watchdog Timer Yes
Memory
Technology DDR4 SDRAM support ECC, up to 3200 MT/s
Max. Capacity Up to 32GB
Socket 2 x 260-pin SO-DIMM
Display
Graphic AMD® VEGA graphics
Display Interface 4 x HDMI v2.0b (2 x co-layout LVDS 2ch), 2 x LVDS (Dual channel 18/24-bit)(1 x co-layout eDP v1.4)
I/O
Expansion Slot 1 x PCIe x8, 1 x Mini-PCIe (Full-size w/ micro-SIM), 1 x M.2 M-key 2260 (SSD)
LAN 2 x 10/100/1000 Mbps
Serial ATA 1 x SATA III support SATADOM
Audio Line-in, Line-out, Mic-in
USB 2 x USB 3.1, 3 x USB 2.0
COM 2 x RS-232, 1 x RS-232/422/485
Display 4 x HDMI v2.0b, 2 x LVDS (1 x co-layout eDP optional) 1 x eDP (optional)
Digital I/O 4-in/4-out
SMB 1
PS/2 N/A
Power Requirement
Power connector ATX 2x2-pin, DC-in Jack 4-pin
Power Type DC-in 12V or 19~24V
Power Mode AT/ATX (by jumper selection)
Environment
Storage Temperature -40°C ~ 80°C (-40°F ~ 176°F)
Relative Humidity 0% ~ 95% (non-condensing)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C ( -4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
