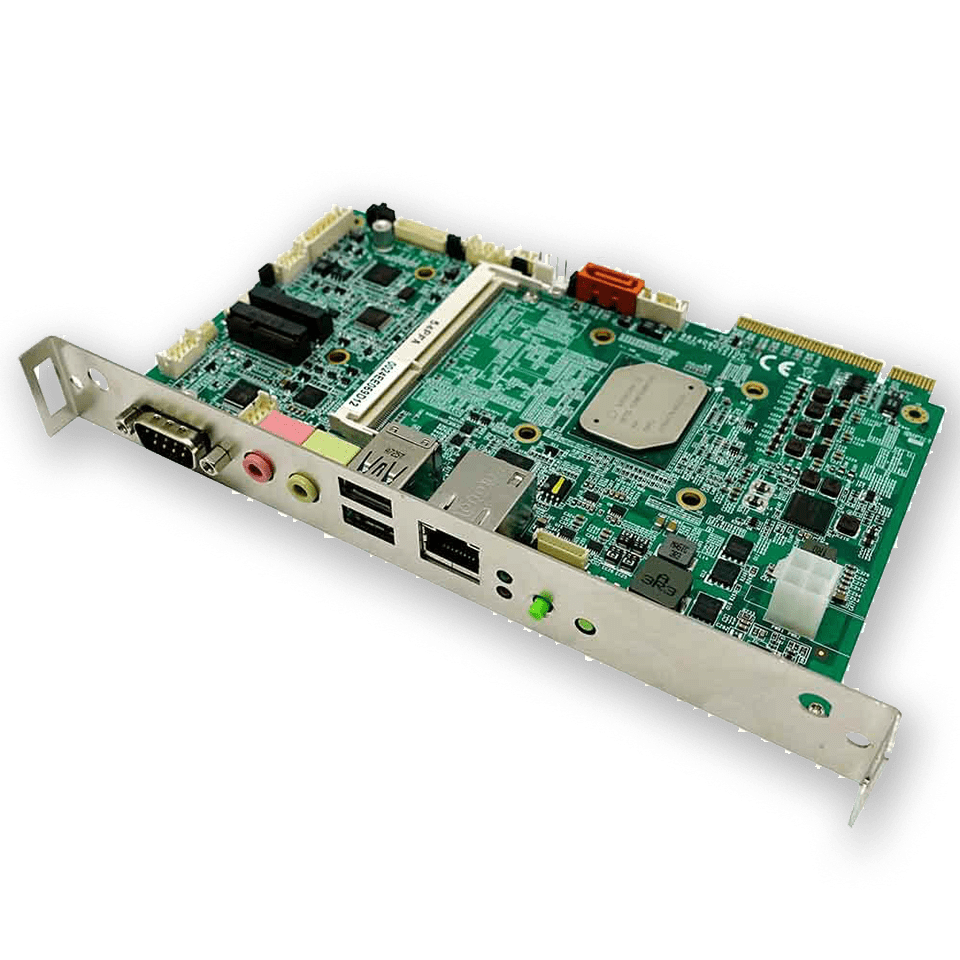

Intel® Smart Display Module

ASDM-APL5

Intel® Smart Display Module(Intel® SDM) with Intel® Atom® E3900 processor, COM, 2 USB, One GbE LAN.
  • Intel® Apollo Lake SoC on board
  • One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM
  • One Intel® Gigabit Ethernet ports
  • M.2 (M-Key 2242), M.2 (E-Key 2230)  expansion slots
  • COM, 2 USB 3.0
  • EuP/ErP 2013 Ready

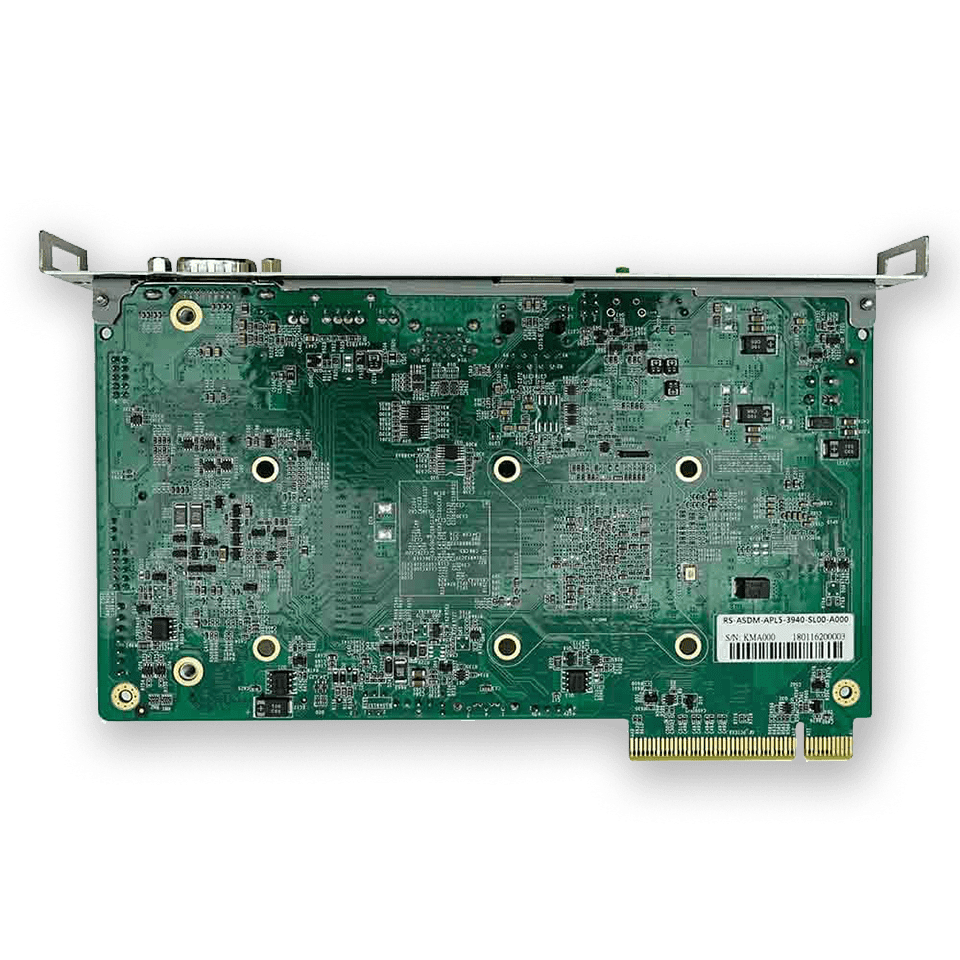

ASDM-APL5/APL6 is followed Intel® Smart Display Module. It’s powered by the onboard Intel® ATOM®/Pentium®/Celeron® processor (code name: Apollo Lake) and the sleekest all-in-one module which makes for a thinner display. The ASDM-APL5/APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.

Intel® Smart Display Module (Intel® SDM) is a scalable, future-proofed plug-and-play solution for digital signage. Its design omits housing, so it can be fully integrated into visual IoT applications that require minimal space with maximum performance. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.
Model name ASDM-APL5
Form Factor Smart Display Module
Dimensions (L)x(W)mm 175 mm x 100 mm
Processor Intel® Atom™ x5-E3940 1.60GHz / 1.80GHz (Base/Burst) Quad-Core SoC (9.5W)
Intel® Pentium® x7 E3950 1.60GHz / 2.00GHz (Base/Burst) Quad-Core SoC (12W)
Intel® Celeron® x5 E3930 1.30GHz / 1.80GHz (Base/Burst) Dual-Core SoC (6.5W)
Intel® Ato
Chipset Intel® Apollo Lake SoC integrated
BIOS AMI UEFI Flash ROM
Technology DDR3L up to 1866MHz SDRAM
Max. Capacity Up to 8GB
Graphic Intel® HD Gen. 9-LP Graphics
Display Interface DP / HDMI (Golden Finger)
LAN Controller Intel® I211 GbE
Audio Codec Realtek ALC662 HD
Audio MIC-in, Line-out,

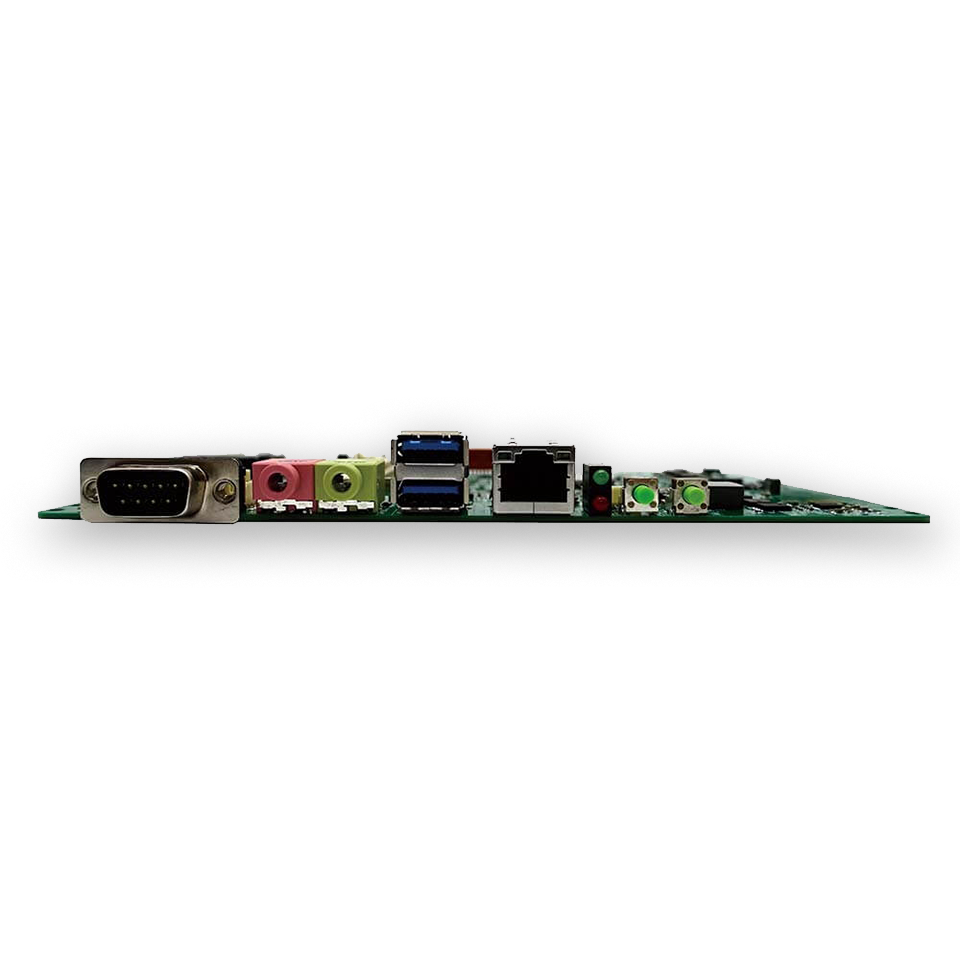

USB 2 x USB 3.0 (Rear I/O)
COM 1 x RS-232/422/485 (Rear I/O)
Display HDMI , DP
Digital I/O USB 3.0, USB 2.0, PCIe x1, UART, I2C
Environment
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C (-4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
-40°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0% ~ 95% (non-condensing)
